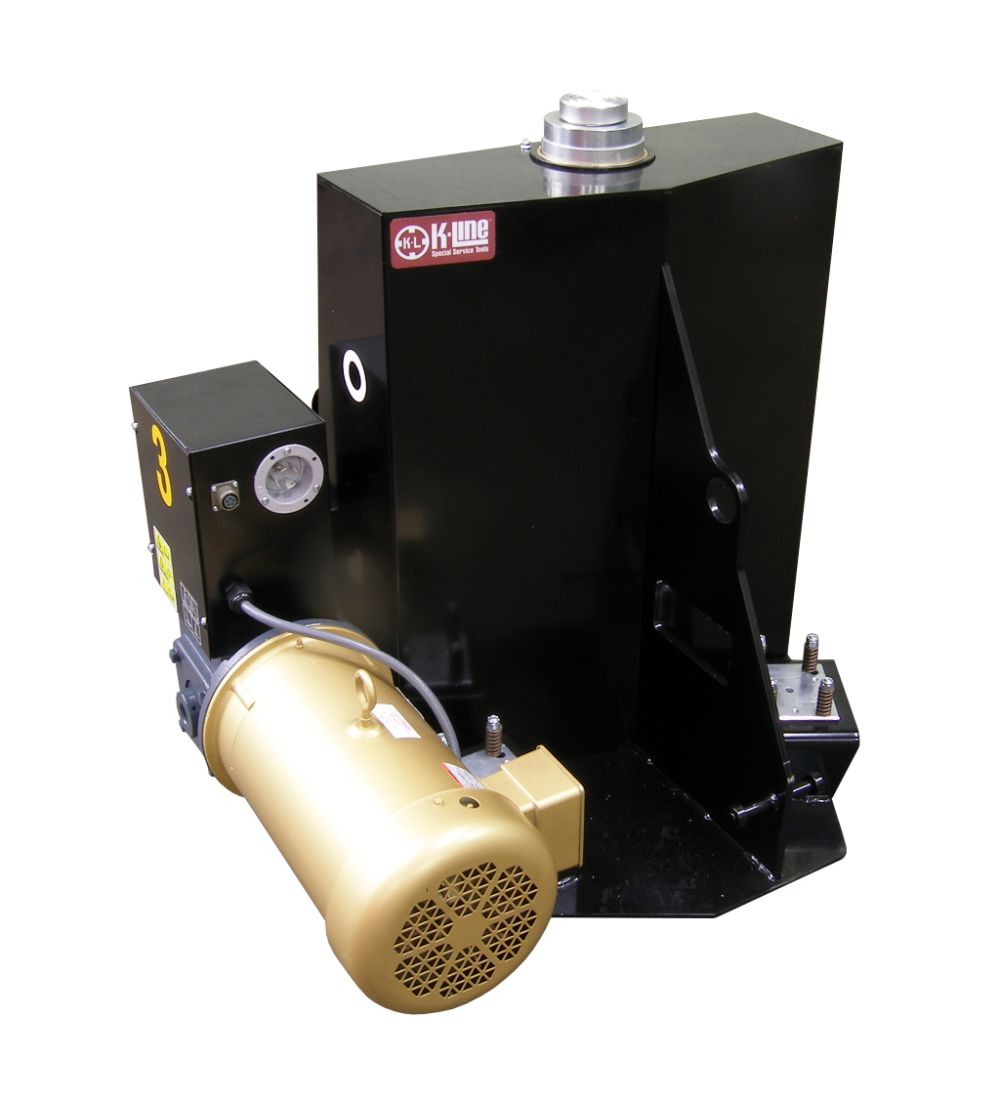

25-TON LOW CLEARANCE LIFT-LOCK STAND, 60HZ

$20,480.60

Out Of Stock: Ships in 6-8 Weeks

SKU

KL30181

FEATURES

25-ton (22680 kg) capacity (100 tons for set of 4)
Continuously positive locking—no need to go under load to lock
No hydraulics or messy fluids
Tested to 3X WLL and rated for use as support stands
4-jack synchronous lifting capability
Spring-loaded casters and brakes for easy positioning
Spacers and height adjustment screw provide adjustable
starting height for fast and easy use
66% time savings vs traditional methods

REGULATORY COMPLIANCE

CE compliant and marked
ASME B30.1 compliant
AS/NZS 2538:2004 compliant
Designed in accordance with AS/NZS 2693:2007
U.S. Patent Pending

TECHNICAL DETAILS
	Standard (KL30081)	Low Profile (KL30181)
Capacity	25 tons (22680 kg)
Lift rate	7 in/min (178mm/min)
Clearance	29.9” (760mm)	18.1” (460mm)
Max working height	81.8” (2077mm)	58.3” (1482mm)
Stroke	17.7” (450mm)	6.7” (171mm)
60 Hz Power Supply	480V, 3-phase, 7.1A per stand 240V, 3-phase, 14.2A per stand

More Information

More Information
SKU	KL30181
Service Bulletin	none
