KL50000 COUNTER BORE RE-CONDITIONING TOOL KIT
$1,341.90
Machine all Counter bore Surfaces in a Fraction of the Time!
The K-Line® 50000 Counter Bore Cutting Tool is a precision instrument designed to re-surface the counter bore ledge and provide the correct cylinder liner protrusion for the engine cylinder liner.
Out Of Stock: Ships in 6-8 Weeks
SKU
KL50000
Machine all Counter bore Surfaces in a Fraction of the Time!
The K-Line® 50000 Counter Bore Cutting Tool is a precision instrument designed to re-surface the counter bore ledge and provide the correct cylinder liner protrusion for the engine cylinder liner.
- No special bases required.
- The procedure can be performed with the engine in or out of the chassis.
- Does not require the operator to apply any downward force. Spring Plungers located in the Base Assembly apply all the downward pressure that the tool requires.
- No power tools required. Tool rotation is done by hand only.
- Set the tool one time and resurface all counter bores for the entire engine block.
- Patented: U.S. Patent No. 8.308.401 ; Canada Patent No. 2667147
Click Here For Our Manual

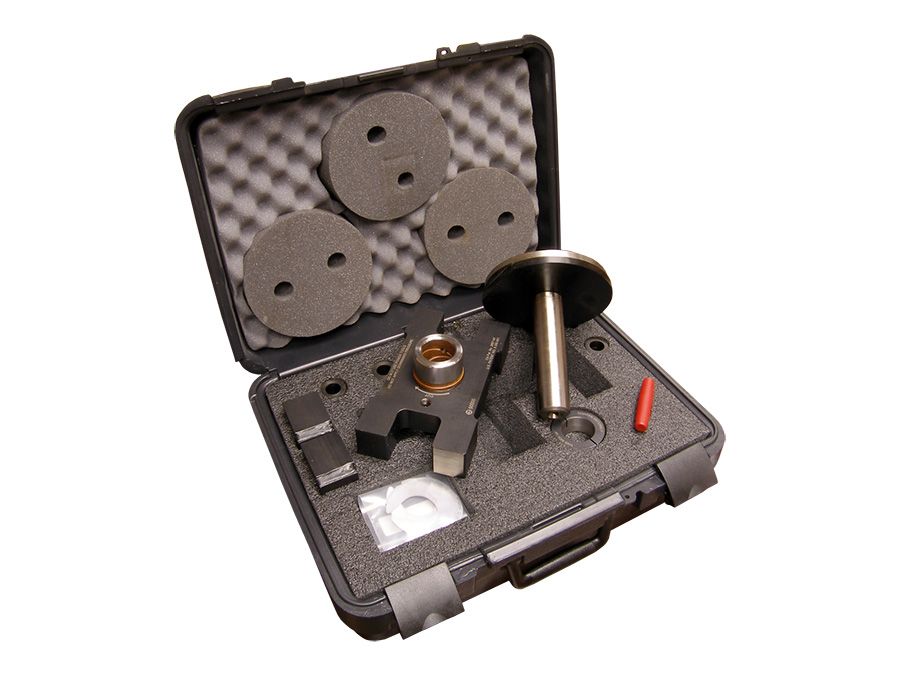

Kit CONTENTS:
| PART # | DESCRIPTION | QTY |
| KL50001A | Base Assembly | 1 |
| KL50008 | Bolt Standoffs | 1 |
| KL50000-2 | Stop Collar | 1 |
| KL50000-6 | T-Handle Allen Wrench | 1 |
| KL50000-8 | Foam Plugs for Cutter | 3 |
| KL50009 | Spacer | 8 |
| AT50000-12 | Shim Set | 4 |
Replacement Parts:
| PART # | DESCRIPTION |
| AT50000-12 | Set of 4 Shims |
| AT50001A-6 | Carbide Insert |
| AT50001A-7 | Insert Screw for KL50001A-6 |
Cutter Assemblies Available
For The Following Engines:
| PART # | DESCRIPTION |
| KL50001 | International/Navistar DT466, DT530, DT570, & HT570 |
| KL50003 | Detroit Diesel Series 60 |
| KL50004 | CAT 3400 Series, C-15, C-16, C-18, C-27, C-32 and Navistar 15 L |
| KL50005 | Cummins ISX 150mm |
| KL50006 | CUMMINS NT/NH, N14 |
| KL50007 | International/Navistar MAXXFORCE 11L/13L BIG BORE |
| KL50011 | CAT C-10, C-11, C-12, C-13 |
| KL50012 | CAT 3306 |
| KL50013 | Cummins ISX 152mm |
| KL50014 | Volvo D11 |
| KL50015 | Cummins ISC |
| KL50016 | Cummins ISL/PACCAR PX9 |
| KL50017 | Cummins ISM |
| KL50018 | Detroit Diesel 13L |
| KL50019 | Detroit Diesel 15L & 16L |
| KL50020 | PACCAR MX11 |
| KL50021 | PACCAR MX13 |
| KL50022 | Cummins ISX12 |
| KL50023 | Deutz 912 & 913 |
| SKU | KL50000 |
|---|---|
| Service Bulletin | none |
